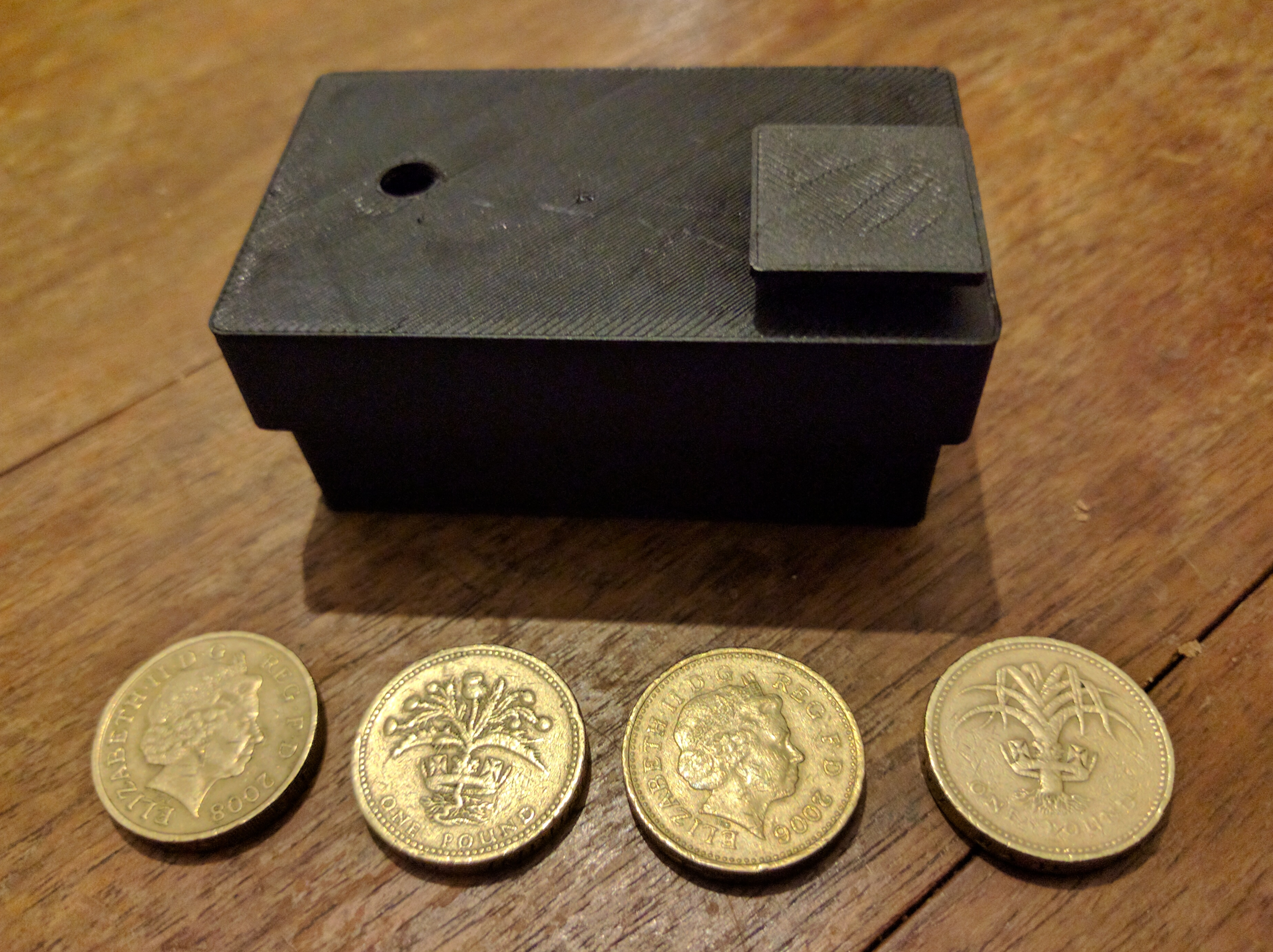

Making of Microbutton

More technical details of how the MicroButton works.


The ESP8266 development board is running the wonderful Micro Python. As a general overview, the board sleeps in low power mode until the reset button is pressed. Then connects to the wifi network using values stored in, then do http_get(config_mc.resetURL) and machine.deepsleep(), sleeping the board in low power mode until the reset button is pressed.

# Micro Python
do_connect(config_mc.ssid, config_mc.passwd)

Much more tricks are used to make the configuration simple. Normally Micro Python boots and set-ups a webconsole. I have changed this to run a mini webserver

Fun Webserver in Micro Python

Micro Python on the ESP8266 does not include urlencode. So extracting a string like from a response on the very basic webserver is hard. However JSON encoding and decoding is possible. All I have to do is send JSON back to the webserver.

We set the ESP8266 development board to be an access point, so no jquery - src="" and simple webserver only accepts a 4096 bytes. The other example server did not accept Content-Type:application/json very well.

So what can we do with a few bytes. We split the four inputs (SSID, Passwd, resetURL & poweroffURL) and send them one at a time, given all the other padding, allowing a whopping 85 per field. Also, after every set - we just reply with a name of the next field, no reloading of the full page - took much of a hack to call it a full RESTful interface. On the last response we just hide the set button. Last of all remove much of the white space indenting to get a final squeeze.

function sV() {
    var v=document.getElementById('v').value;
    var k=document.getElementById('k').value;
    var obj ={};
    obj[k] =v;
    var j=JSON.stringify(obj);
    var x=new XMLHttpRequest();"POST", "/");
    x.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
    x.onloadend = function () {
        var r=(x.responseText);
        if ( r == "D" ) {
            document.getElementById("s").style.visibility = "hidden"
            d = document.getElementById('l');
            d.innerHTML = d.innerHTML + 'Set ' + j + '<br/>Done';
        } else {
            d = document.getElementById('l');
            d.innerHTML = d.innerHTML + 'Set ' + j + '<br/>';
            document.getElementById("n").innerHTML = r;
            document.getElementById("v").value = "";
            document.getElementById("k").value = r;
