Electrics
Some details on the electrics in the shed - basically build notes.

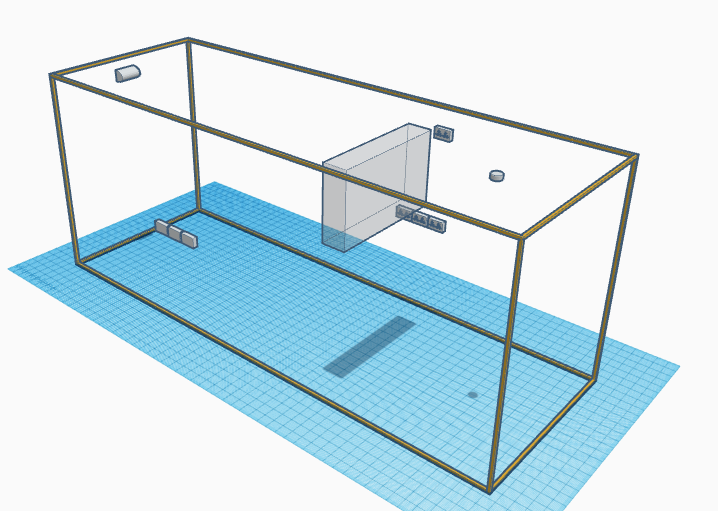

Rough Design Sketch.
Sketch via tinkercad. Two lighting points, two of triple double gang sockets (with built in USB) and a doubel docket to power the telly. Planning to use easybulb.com / limitlessled.com/ / mi-light to control the lights - hence no physical wired lighting switches.

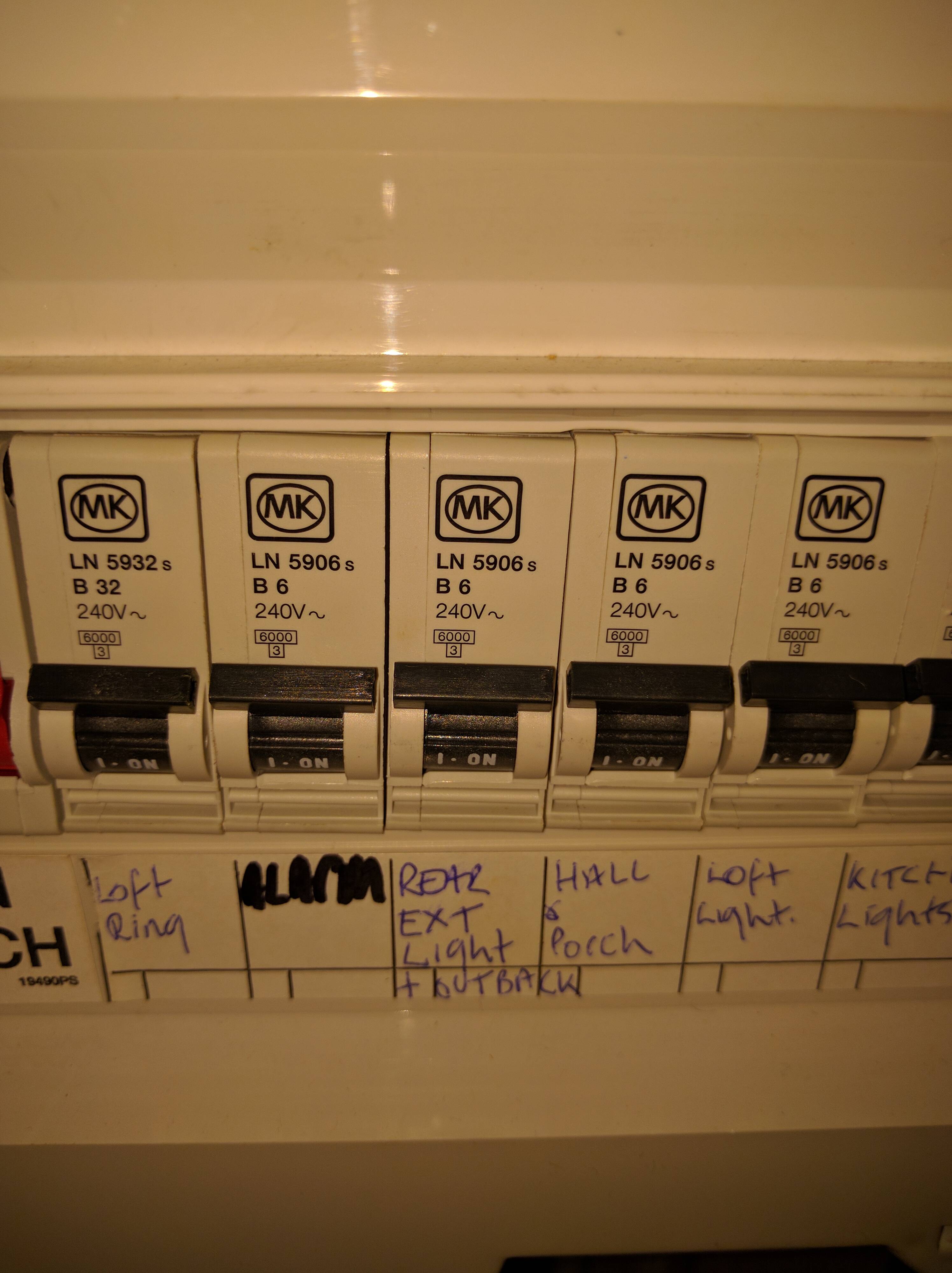

A the moment the limiting factor is the 6A MCB on my house's consumer unit that feeds outside.
Items to purchase:-
- http://www.screwfix.com/p/time-arctic-flexible-cable-3183ag-3-core-2-5mm-x-50m-blue/94475
- http://www.screwfix.com/p/tower-round-cable-clips-9-10mm-white-pack-of-100/11824
- http://www.screwfix.com/p/tower-external-gland-kit-20-ip66-pack-of-2/56505
- http://www.screwfix.com/p/-/44635
Within the walls
- http://www.screwfix.com/p/wago-abox-lever-connector-222-series-junction-box/9390g or
- http://www.screwfix.com/p/3-way-lever-connector-222-series-pack-of-50/76776
- http://www.screwfix.com/p/4-entry-junction-box-with-knockouts-grey-65-x-65-x-45mm/63295
Terminating SWA
Code
python-dev, pip https://shkspr.mobi/blog/2016/02/cheap-bluetooth-buttons-and-linux/ http://www.thingiverse.com/thing:1015706
